Machine thickness：90mm Rack thickness：30mm |
|||||||||||||
|
|
|||||||||||||
|
Structure size（mm） |
Packing list |
||||||||||||
|
Product model |
65 |

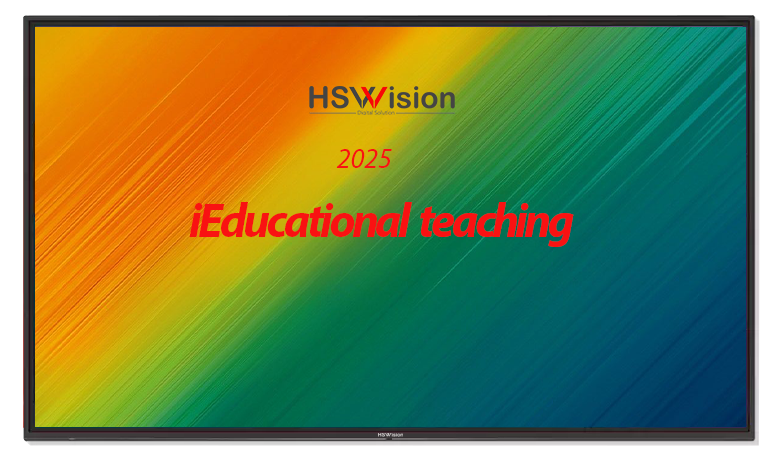

65 inch Touch smartboard |
1 |
||||||||||
|
Machine size |
L1496.7*H912.9*W88.8 |
Remote control |
1 |
||||||||||
|
Box packing size |
L1645*H1025*W210 |
Touch pen |
1 |
||||||||||
|
Net weight（KG） |
30 |
Power cord |
1 |
||||||||||
|
Gross weight（KG） |
39 |
The data identified in this specification is for reference only! In kind prevail! |
|||||||||||
|
Wall mounting hole size |
level400 x vertical300 |
||||||||||||
|
Screw specification |
M8 x L25 x 4 pcs |
||||||||||||
|
Display parameter |
OPS load output parameter |
||
|
Display size |
1428*804(mm) |
OPS supply voltage |
17-21V DC |
|
Physical resolution |
4K(3840x2160) |
Rated output current |
1.0A - 7.0A |
|
Peak brightness |
≤350cd/㎡±30 |
Peak output current |
*8.0A |
|
Dynamic contrast |
5000:1 |
Rated load power |
135W |
|
Viewing Angle |
H/V:178/178 Angle |
Supported interface type |
The OPS-C 80-pin blind JAE interface complies with Intel open pluggable specifications |
|
Screen scale |
16:9 |
Compatible case size |
L196*W180*H33 |
|
Display color |
10Bit,16.7M |
OPS Image resolution |
Maximum support output 3840*2160p |
|
Backlight type |
DLED |
OPS supply voltage |
17-21V DC |
Side view of the interface on the mainboard
