Conference Interactive SmartBoard - 75 inch

Mechanical Performance
Power input	AC 180-240V 50/60Hz
consumed power	320W（DLED）
Loudspeaker power	Stereo hybrid dual channel (2x10W)
Built-in Camera	It is optional (standard one without it)

Machine thickness：90mm Rack thickness：30mm

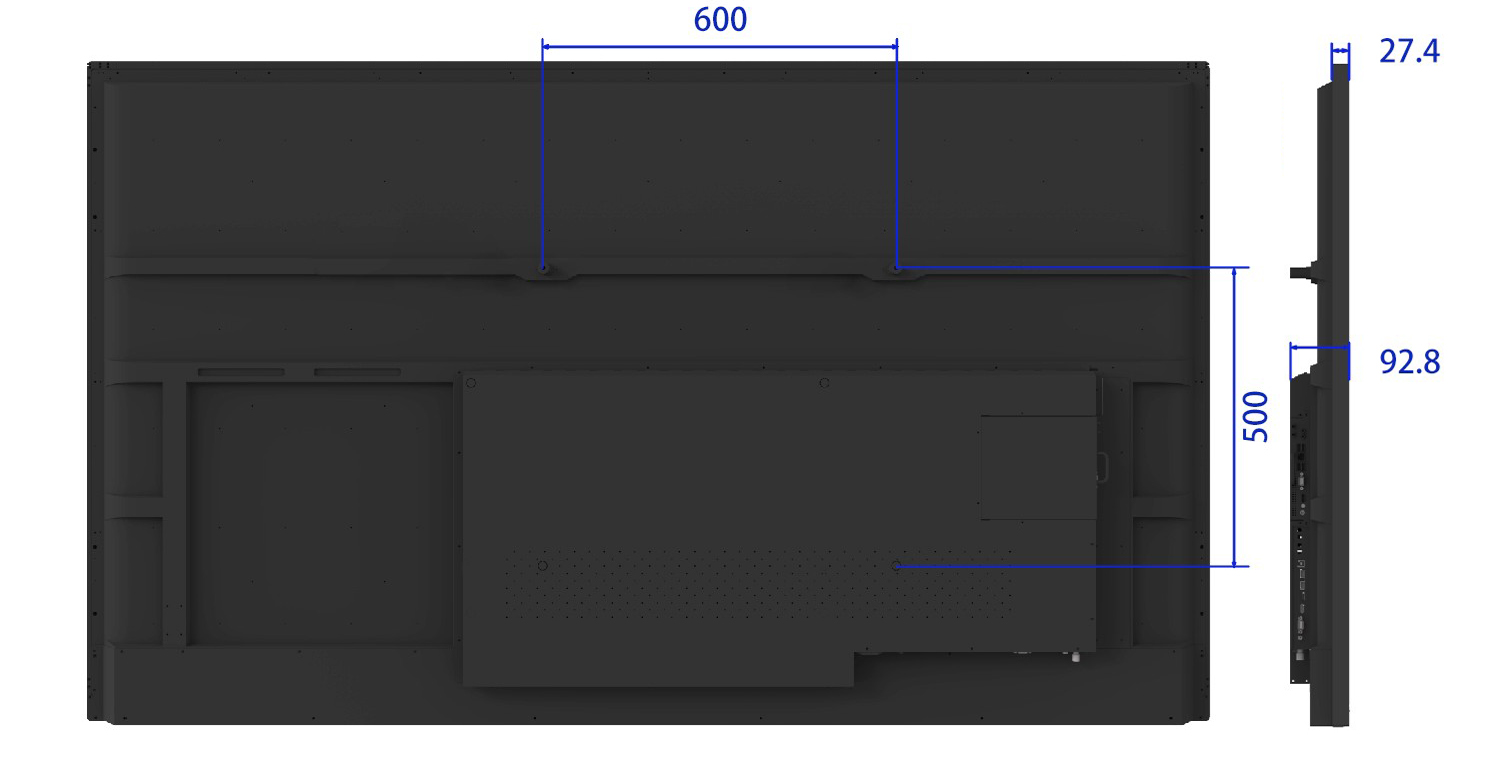

Structure size（mm）

Packing list

Product model

75 inch Touch smartboard

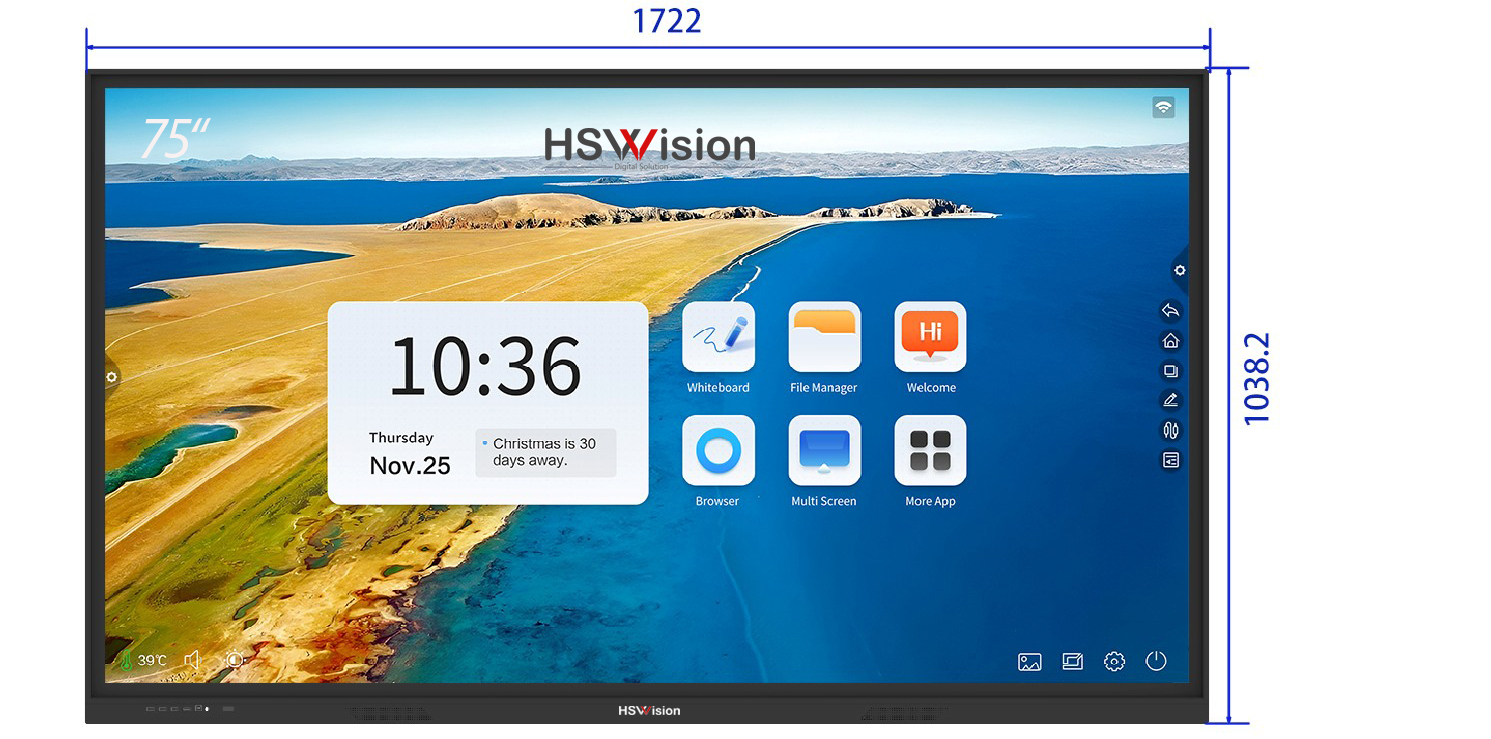

Machine size

L1722xH1038.2xW92.8

Remote control

Box packing size

L1870*W225*H1180

Touch pen

Net weight（KG）

Power cord

Gross weight（KG）

The data identified in this specification is for reference only! In kind prevail!

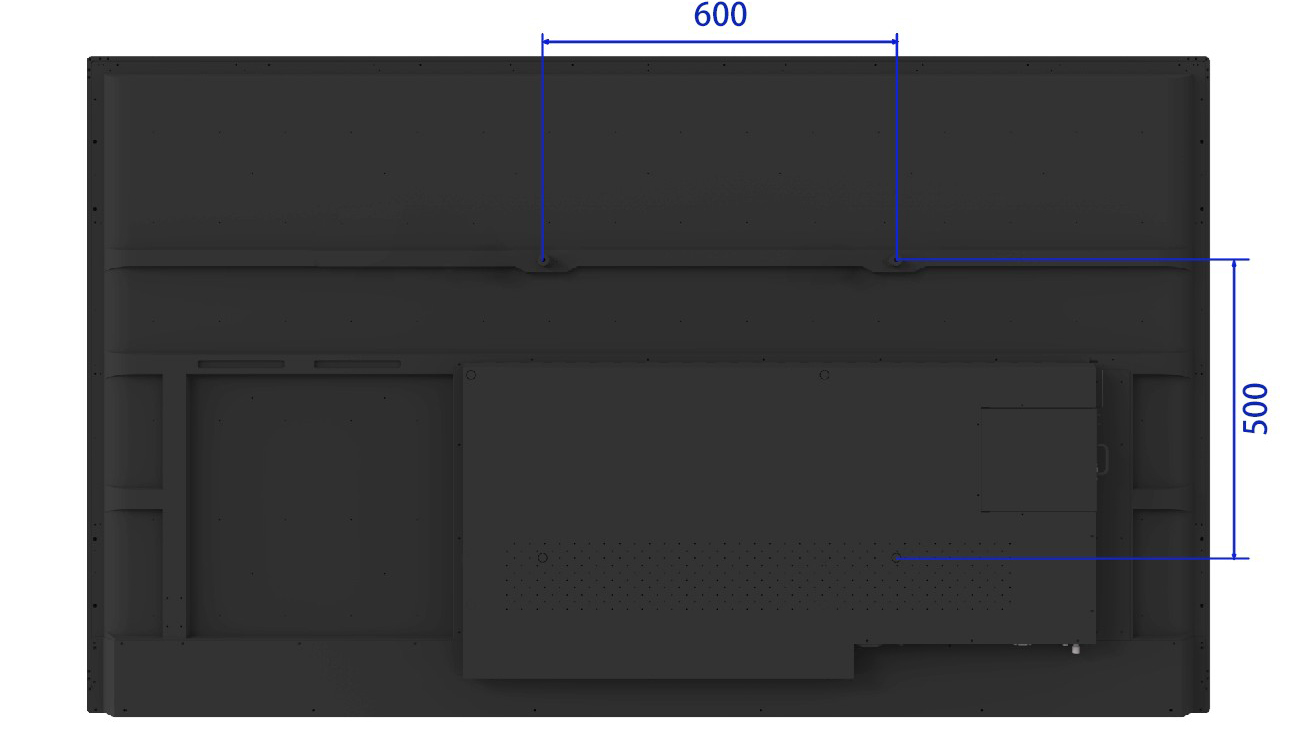

Wall mounting hole size

Level600 x vertical500

Screw specification

M8 x L25 x 4 pcs

Performance profile
OSD language	Simplified Chinese, English, etc
Support screen	LCD/LED
CPU	ARMCortex-A532+A732 4core (More options available.)
RAM	4G ( Max. up to 8GB)
ROM	32G ( 64GB, Max. up to 128GB)
Android version	Android 11.0, 12.0 (Max. up to Android 13.0)
Other functions	★Support multi-touch screen, with OPS computer module can be seamlessly switched between dual systems (windows/Android). ★Support Android and computer any screen handwriting comment function, support real scene comment and panoramic comment function. ★Support screen light control function (need to be customized). Support motherboard temperature monitoring function, real-time monitoring motherboard working temperature, let you rest assured

Display parameter		OPS load output parameter
Display size	1650 x 929 (mm)	OPS supply voltage	17-21V DC
Physical resolution	4K(3840x2160)	Rated output current	1.0A - 7.0A
Peak brightness	≤350cd/㎡±30	Peak output current	*8.0A
Dynamic contrast	5000:1	Rated load power	135W
Viewing Angle	H/V:178/178 Angle	Supported interface type	The OPS-C 80-pin blind JAE interface complies with Intel open pluggable specifications
Screen scale	16:9	Compatible case size	L196W180H33
Display color	10Bit,16.7M	OPS Image resolution	Maximum support output 3840*2160p
Backlight type	DLED	OPS supply voltage	17-21V DC

IFP HS75iC
