IFP HS86iC

Performance profile

OSD language

Simplified Chinese, English, etc

Support screen

LCD/LED

CPU

ARMCortex-A53*2+A73*2 4core

RAM

4G ( Max. up to 8GB)

ROM

32G ( 64GB, Max. up to 128GB)

Android version

Android 12.0, 13.0 (Max. up to Android 14.0)

Other functions

★Support multi-touch screen, with OPS computer module can be seamlessly switched between dual systems (windows/Android).

★Support Android and computer any screen handwriting comment function, support real scene comment and panoramic comment function.

★Support screen light control function (need to be customized). Support motherboard temperature monitoring function, real-time monitoring motherboard working temperature, let you rest assured.

Display parameter

OPS load output parameter

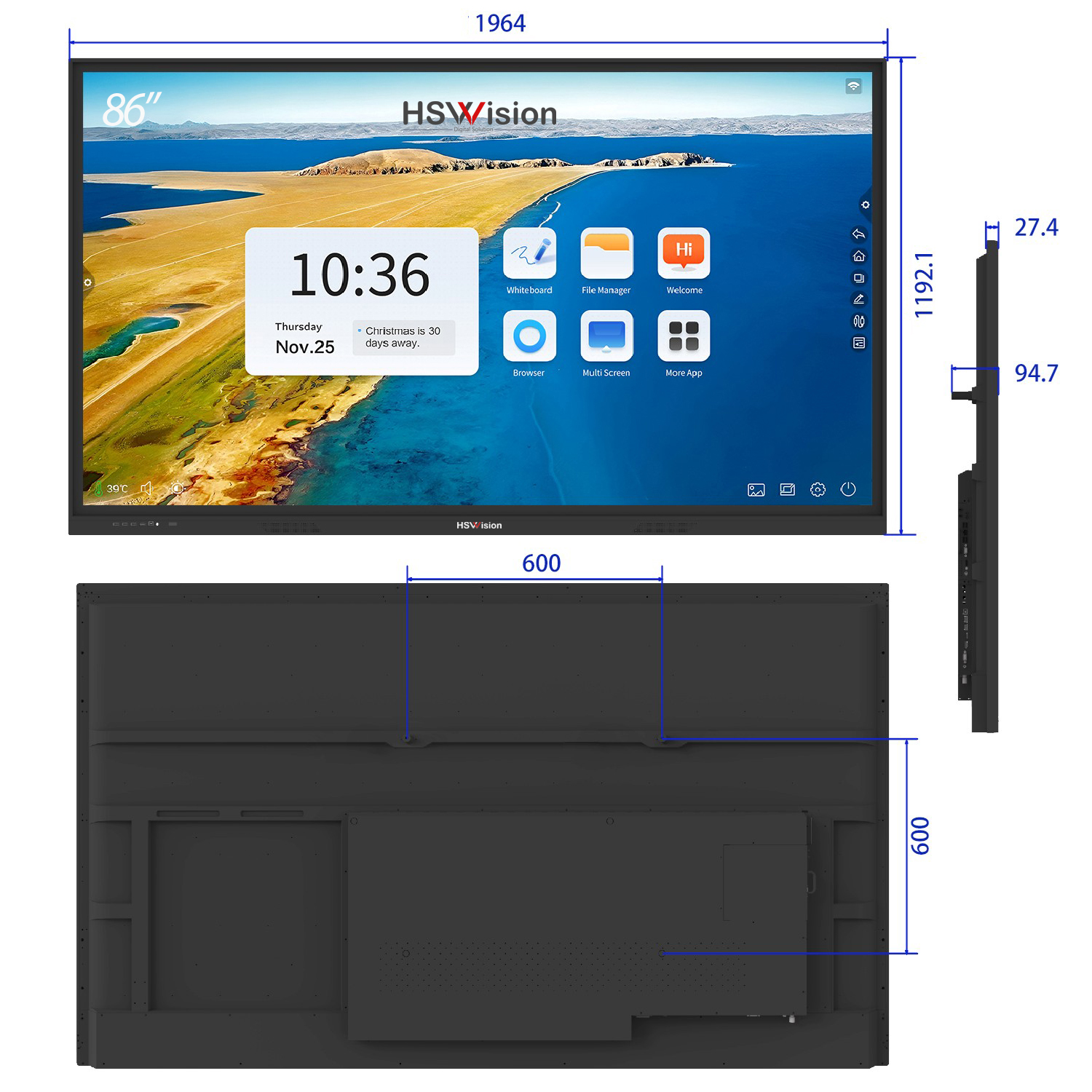

Display size

1895x1065(mm)

OPS supply voltage

17-21V DC

Physical resolution

4K(3840x2160)

Rated output current

1.0A - 7.0A

Peak brightness

≤350cd/㎡±30

Peak output current

*8.0A

Dynamic contrast

5000:1

Rated load power

135W

Viewing Angle

H/V:178/178

Angle

Supported interface type

The OPS-C 80-pin blind JAE interface complies with Intel open pluggable specifications

Screen scale

16:9

Compatible case size

L196*W180*H33

Display color

10Bit,16.7M

OPS Image resolution

Maximum support output 3840*2160p

Backlight type

DLED

OPS supply voltage

17-21V DC
