What is the charging time of iPhone16 Pro under various original Power Chargers? (Huaswee GaN Fast)

What is the charging time of iPhone16 Pro under various original Power Chargers? (Huaswee GaN Fast, result From Chongdiantou)

The iPhone 16 series has been officially released already, and here is the conduct charging tests on four models, so that it is bringing users a clearer charging evaluation; Based on the Apple family bucket charger, is there any difference in the performance of the full charge of the iPhone 16 Pro? Huaswee Charger hope could help users to make a clear understanding of the charging process.

]

The size of iPhone 16 Pro mobile phone increased from 6.1 inches to 6.3 inches, It is using a new generation of super porcelain crystal panel + super retina XDR OLED full screen.

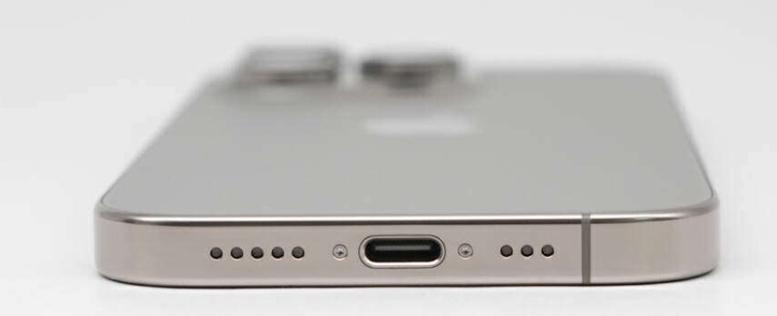

The charging port in the middle frame of the bottom (of the iPhone 16 Pro) is a USB Type-C physical port that supports DisplayPort USB 3 (up to 10Gb/s) data transmission specifications, and speaker holes are provided on both sides of the port.

Radium engraving on metal frame of USB Type-C interface Product, the origin is China, Model No.: A3294.

Charging port: Braided wire body and sub end joint joint smooth transition processing. It’s terminal is plastic shell with bright surface design, both sides of the transition are round.

Excellent: The 6.3-inch iPhone 16 Pro can still be easily held with one hand, its overall holding feeling has not been changed much by compared with the previous generation.

Charging testing

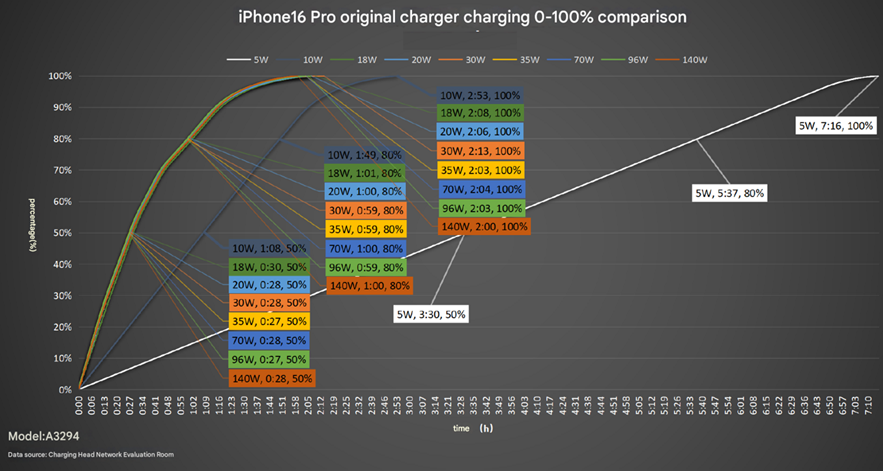

This testing is selecting iPhone 16 Pro and the 5W, 10W, 18W, 20W, 30W, 35W, 70W, 96W and 140W apple original chargers as test objects. The original chargers and iPhone 16 Pro were placed in an incubator at 25℃ and connected to the power supply. The test results are as follows.

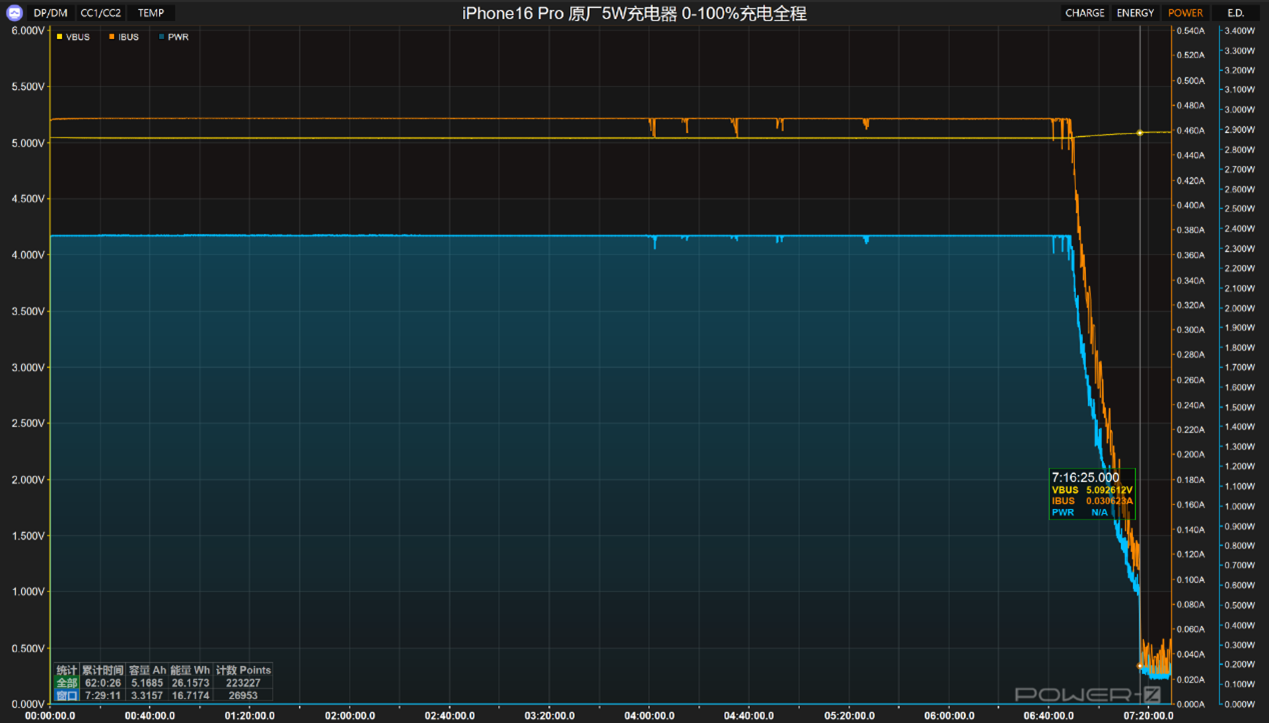

Apple's 5W charger takes 7 hours and 16 minutes to charge an iPhone 16Pro.

It took Apple's 10W charger 2 hours and 53 minutes to charge the iPhone 16Pro.

Apple's 18W charger takes 2 hours and 8 minutes to charge an iPhone 16Pro.

20W Apple charger takes 2 hours and 6 minutes to charge an iPhone 16Pro.

35W Apple charger takes 2 hours and 3 minutes to charge an iPhone 16Pro.

70W Apple charger takes 2 hours and 4 minutes to charge an iPhone 16Pro.

96W Apple charger takes 2 hours and 3 minutes to charge an iPhone 16Pro.

140W Apple charger takes 2 hours to charge an iPhone 16Pro.

Conclusion:
